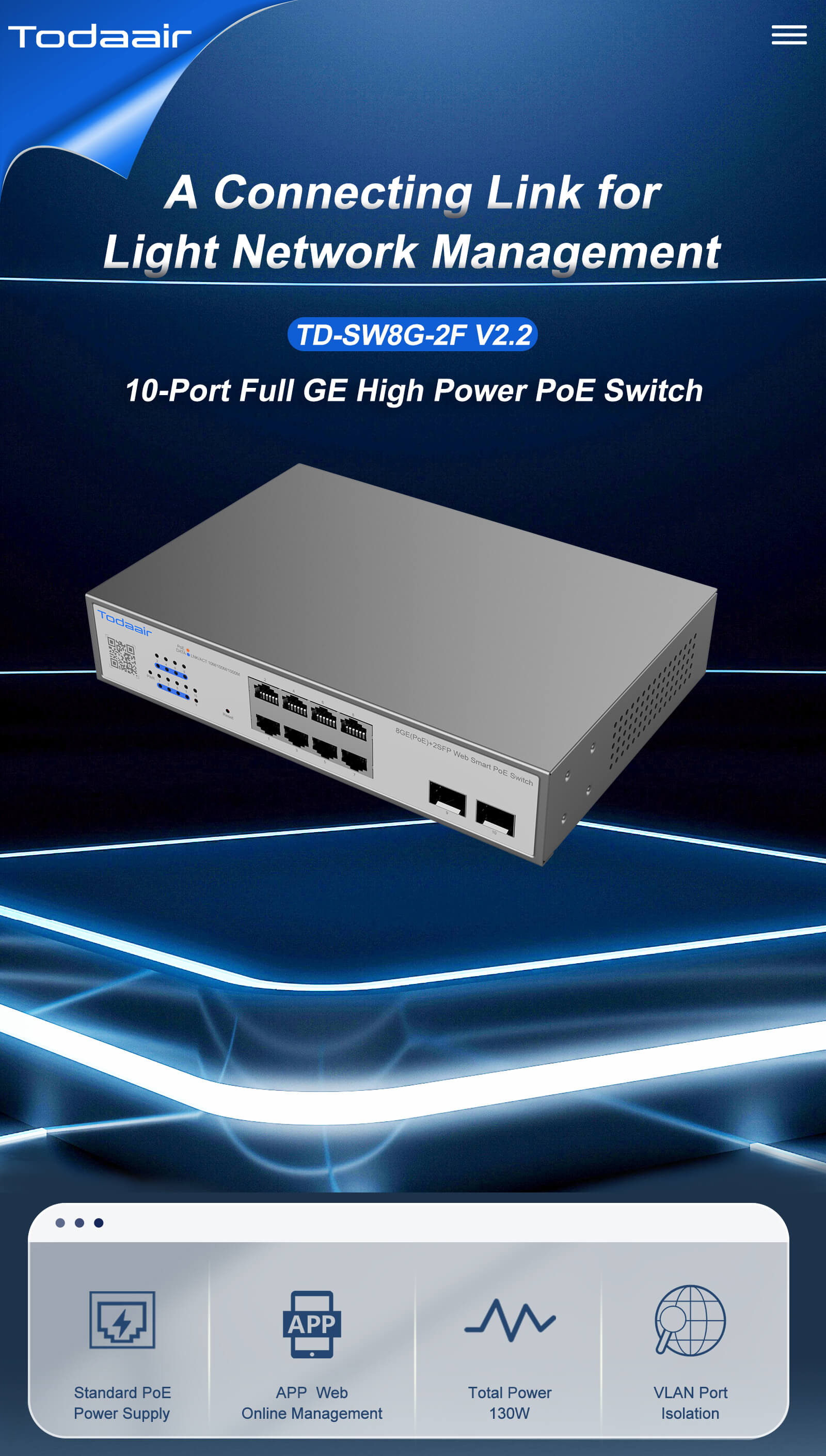

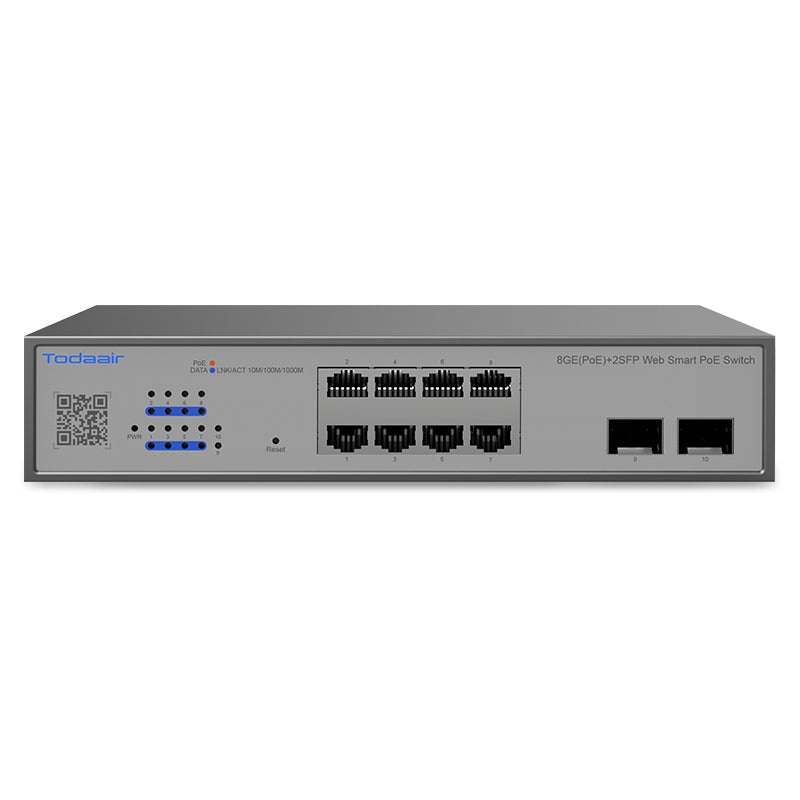

TD-SW8G-2F V2.2 is a Web Smart Managed Gigabit PoE Switch independently developed by Todaair, which is supports App online management.

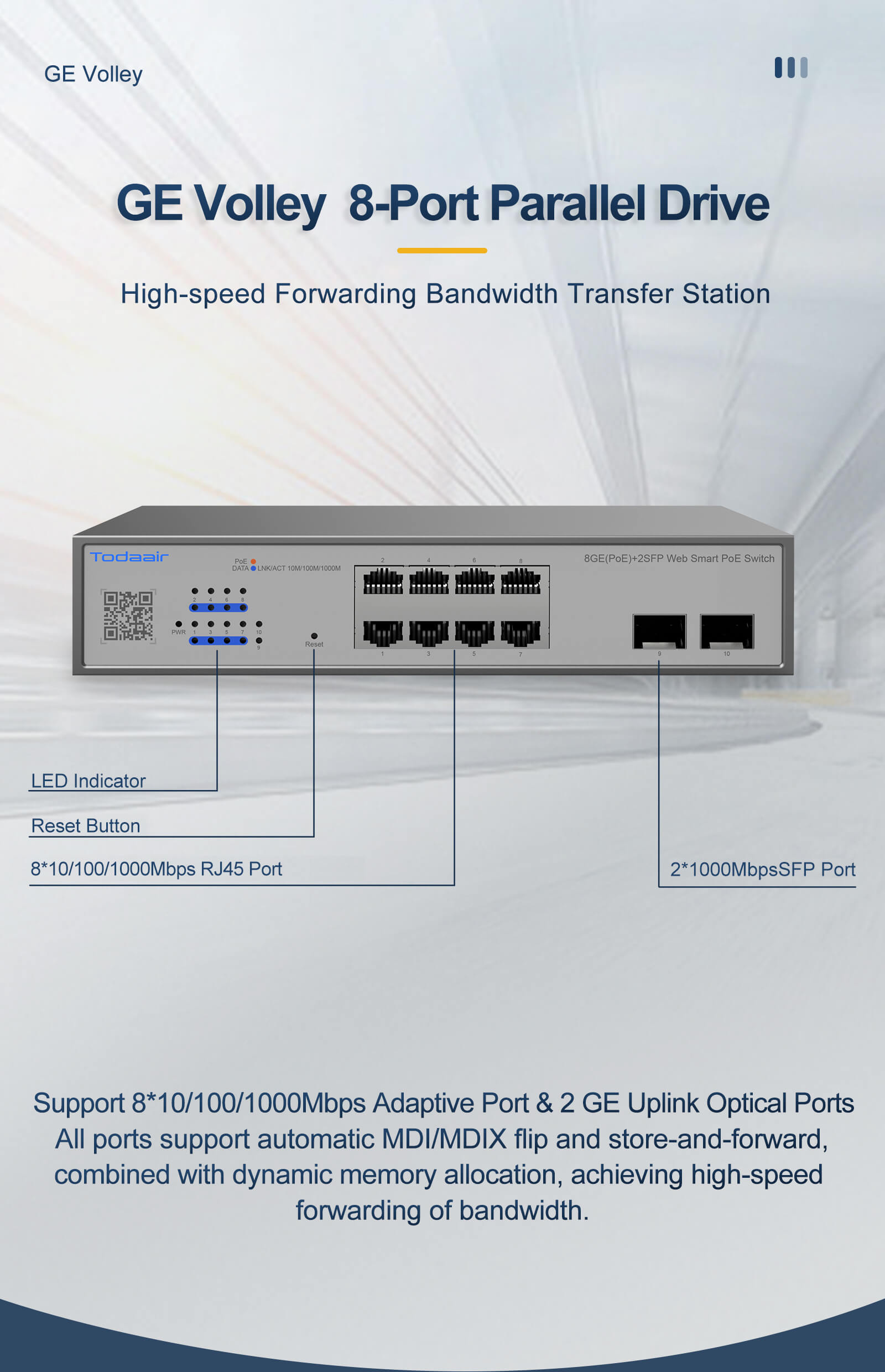

It provides 8*10/100/1000Mbps adaptive RJ45 ports and 2*1000Mbps SFP slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding.
Ports 1-8 have the PoE power supply function and comply with IEEE 802.3af/at standards. They can be used as Ethernet power supply devices to automatically detect and identify compliant power receiving devices and supply power to them through network cables.
The storage and forwarding technology and dynamic memory allocation ensure that bandwidth is effectively allocated to each port.

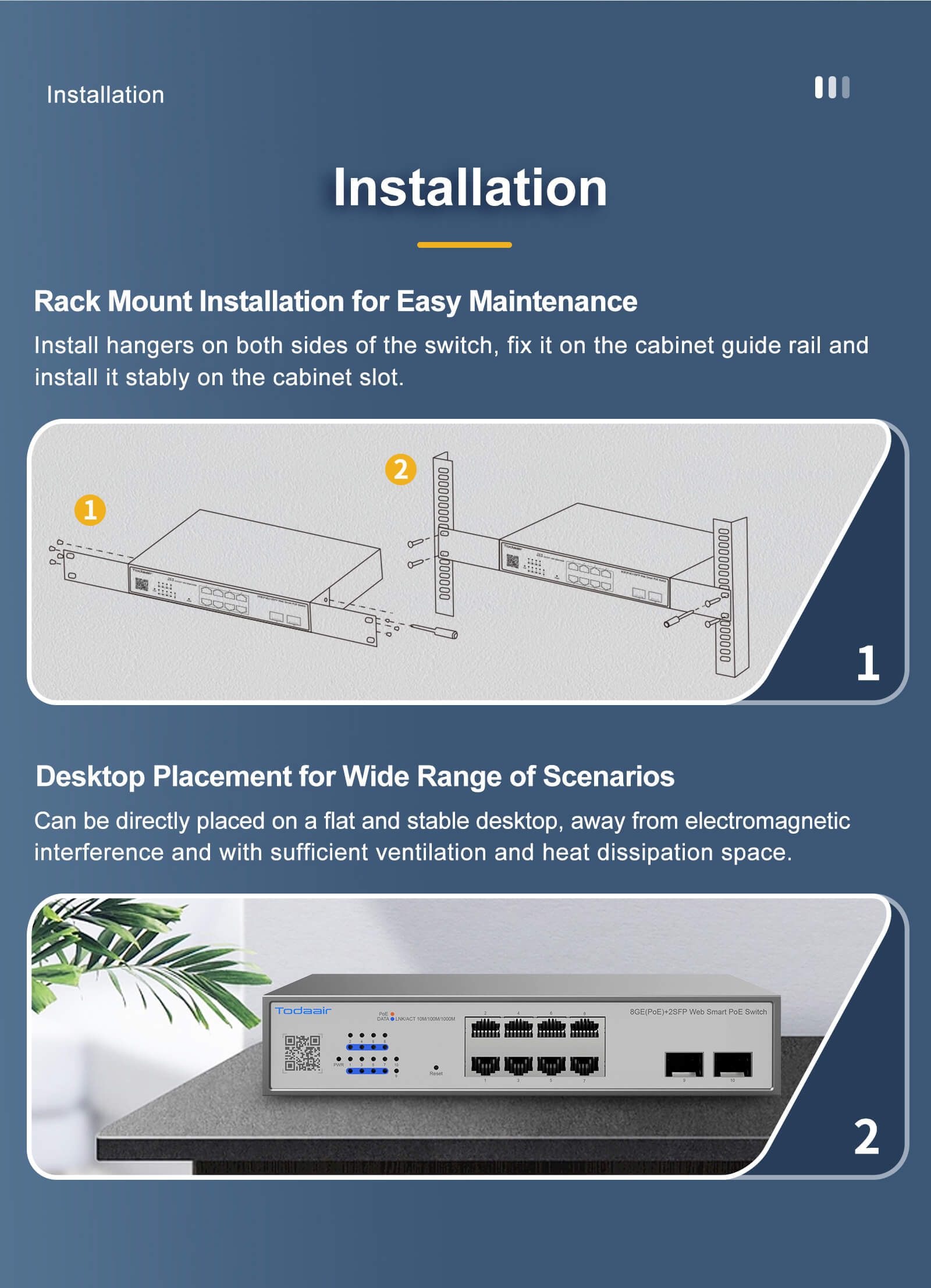

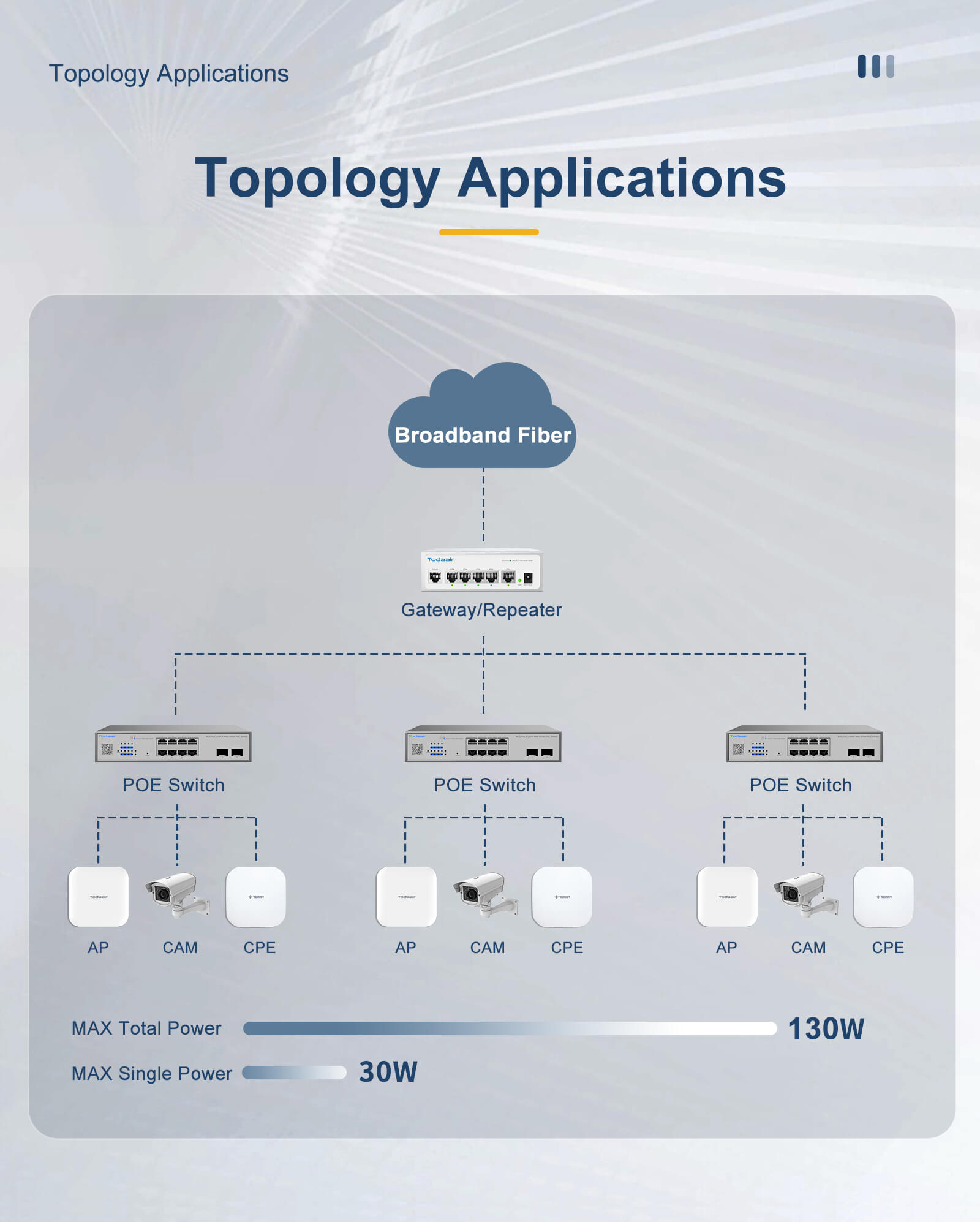

The TD-SW8G-2F V2.2 is easy to use and can flexibly expand home and office networks without limitation of power line layout. It is easy to manage and maintain and meets the requirements of different scenarios.
Features
IEEE 802.3at standard compliant IEEE 802.3af electrical receiving device (PD)
Single PSE port output power up to 30W
Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices
Port power supply priority is supported to ensure continuous power supply for key nodes on the network
Supports IEEE802.3x full-duplex flow control and back-pressure half-duplex flow control
Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression
Supports port traffic statistics, port monitoring, cable detection, and loopback protection
Panel indicators monitor working status and assist in fault analysis
Intelligent identification of wire speed forwarding
